Description

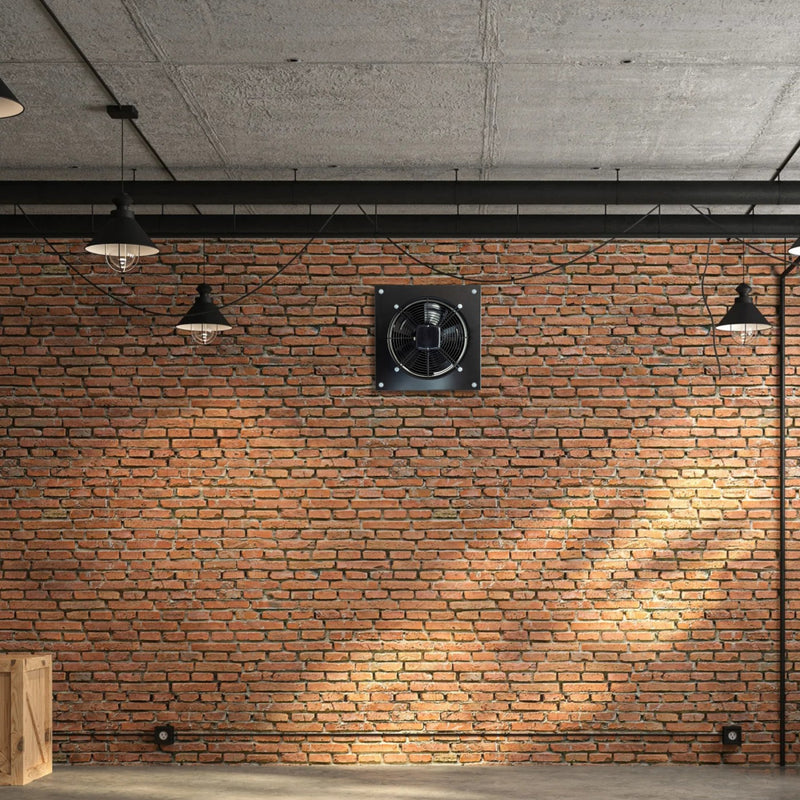

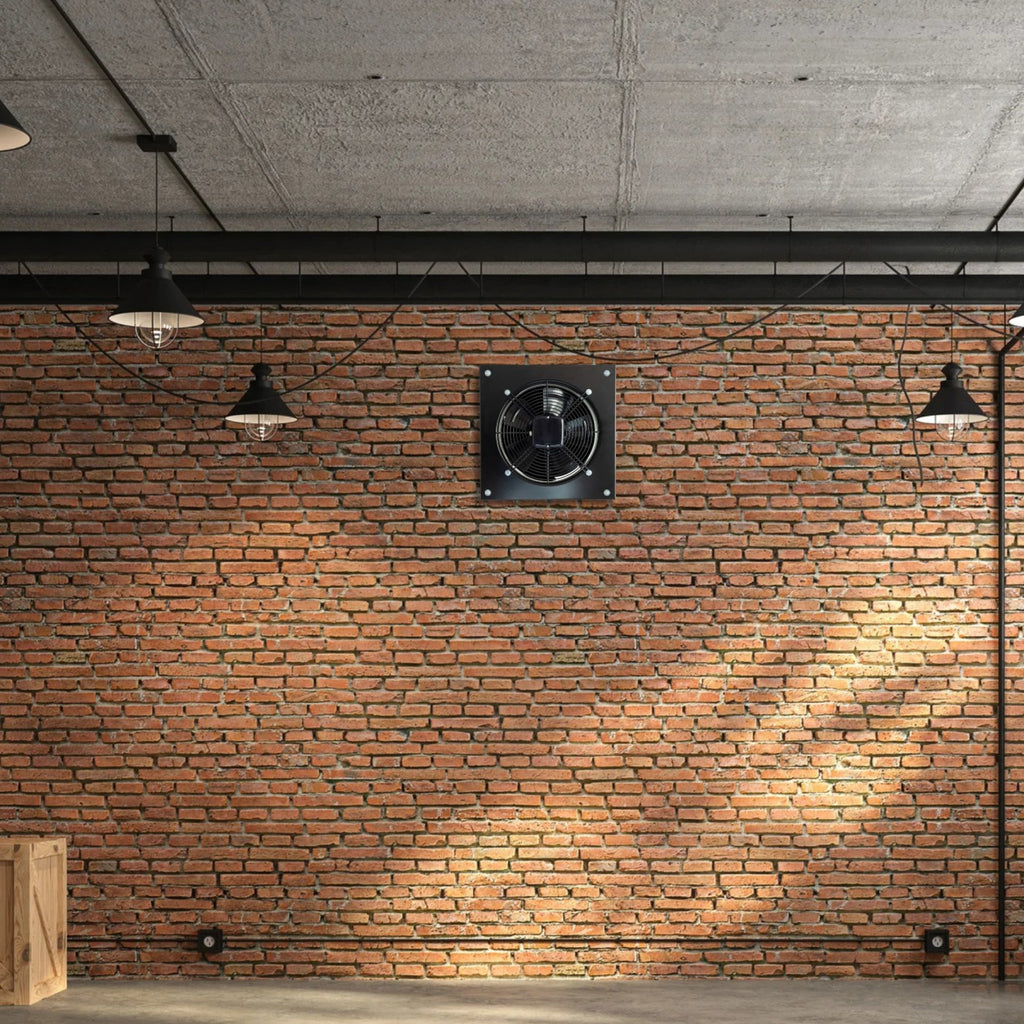

AXF400BG – Axial extractor fan for commercial spaces, workshops, and kitchens.
Product Features
- With Guard
- Exhaust airflow function
- Protective guard included
- Ball bearing motor for long lifespan and quiet operation
- Vertical and horizontal installation
- Warranty: 24 months
Technical Specifications
- Diameter: 430 mm
- Material: Metal
- Colour: Black
- Airflow: 3700 m³/h
- Voltage: 220–240 V ~ 50Hz
- Power: 180 W
- Noise level: 60 dB(A)
- Motor speed: 1350 RPM
- IP rating: IP44
- Working temperature: -30℃ – 60℃
- Installation depth (into hole): 145 mm
- Dimensions (W×H×D): 470×470×210 mm
- Weight: 9.5 kg
- Recommended products: FSC001 speed controller
Applications
Axial fans are designed for efficient air circulation and ventilation in industrial, commercial, and large residential areas. They are commonly used in restaurant kitchens, workshops, warehouses, greenhouses, factories, and garages. Ideal for systems requiring high airflow with moderate pressure, these fans ensure effective removal of heat, smoke, odors, and humidity, providing a reliable and durable ventilation solution.
Packaging Contents
- Fan
- Operating instructions
