Description

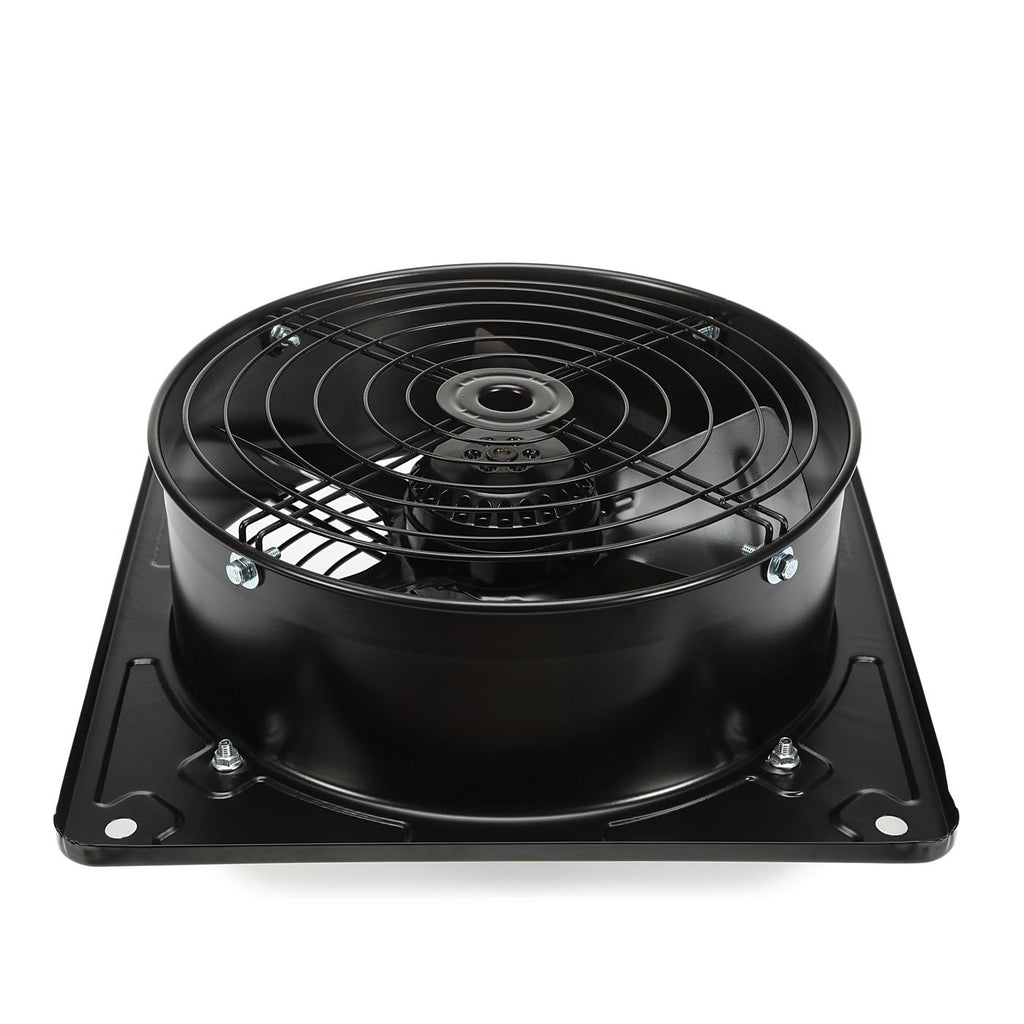

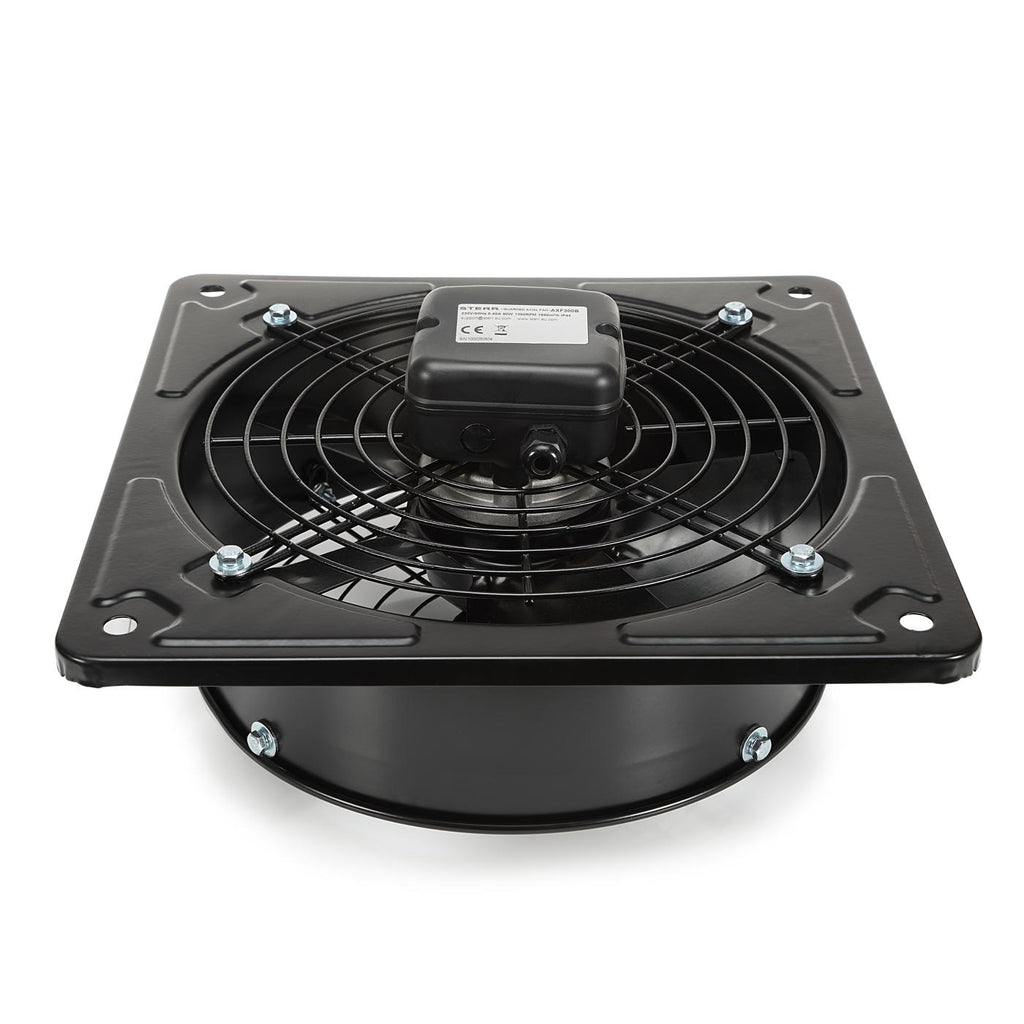

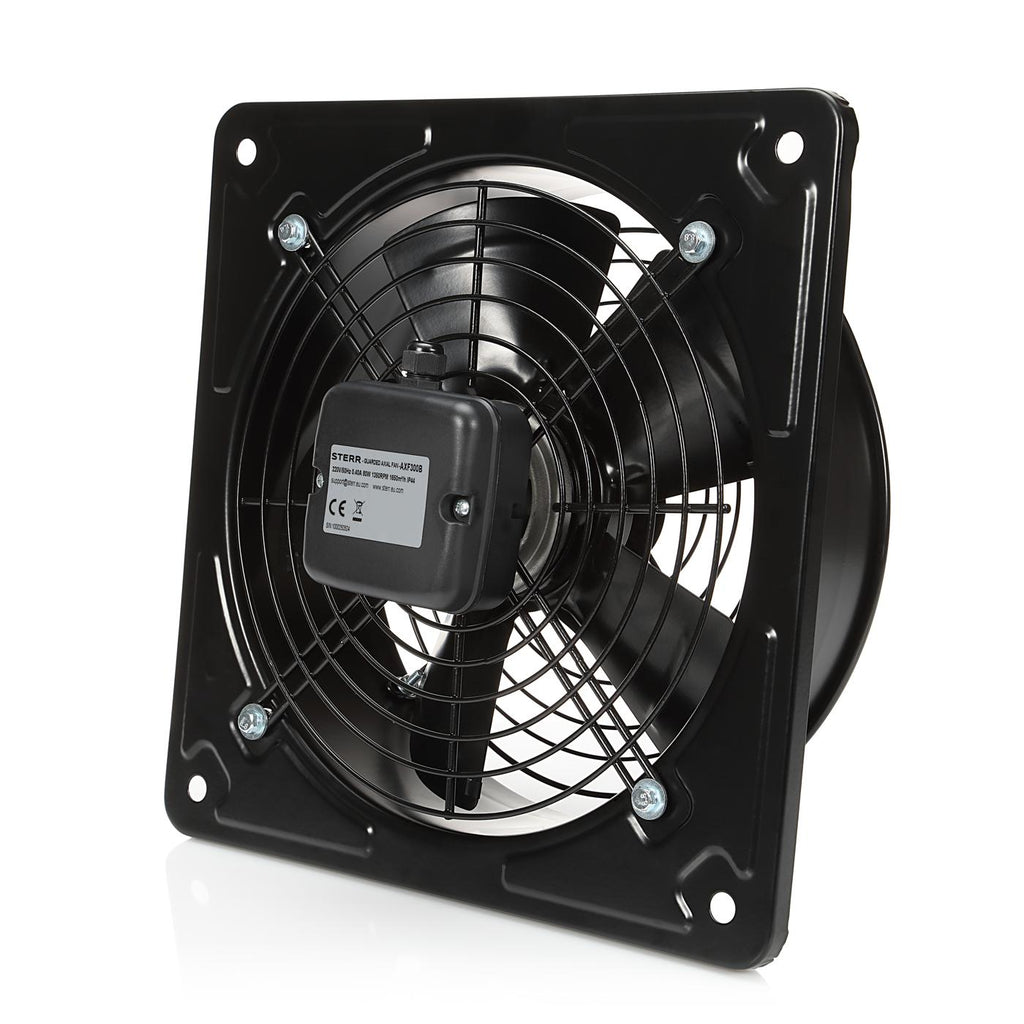

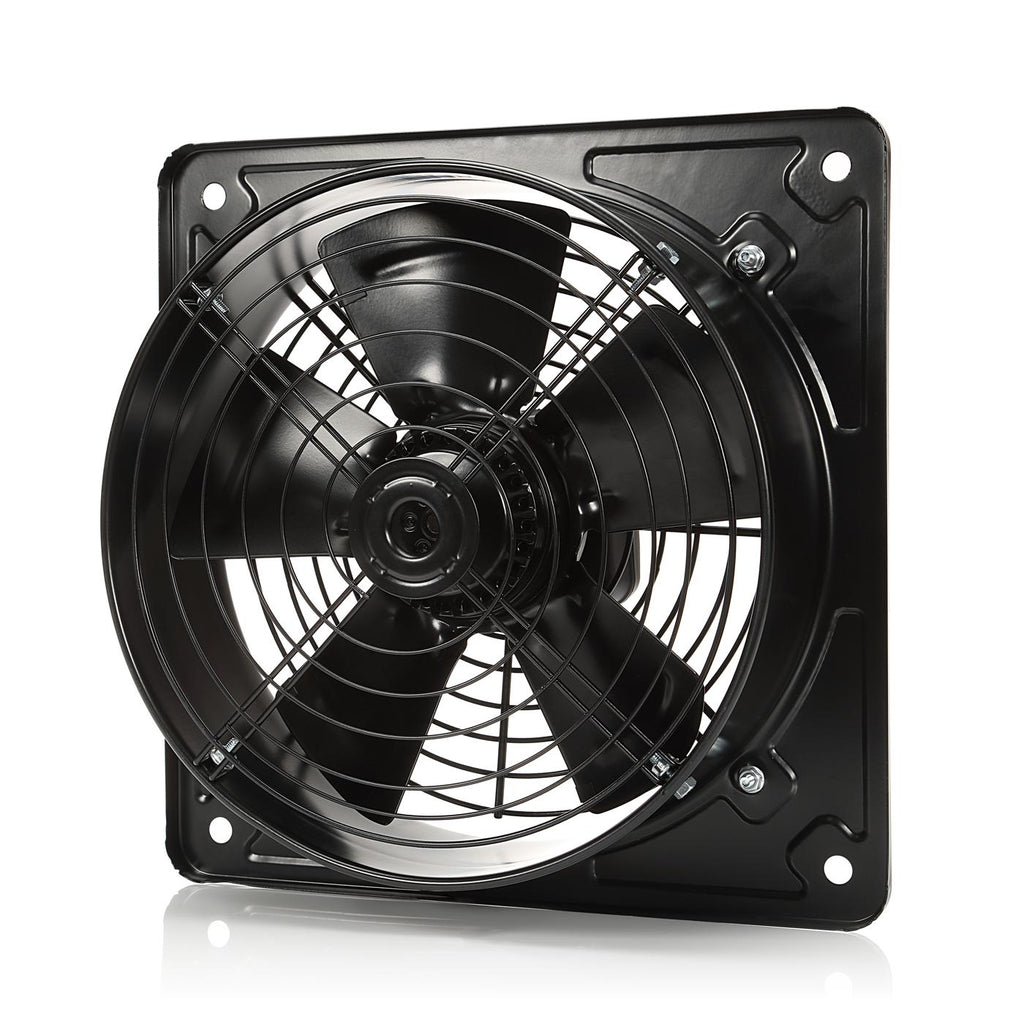

AXF500BG – Axial extractor fan for commercial spaces, workshops, and kitchens.
Product Features
- With Guard
- Exhaust airflow function
- Protective guard included
- Ball bearing motor for long lifespan and quiet operation
- Vertical and horizontal installation
- Warranty: 24 months

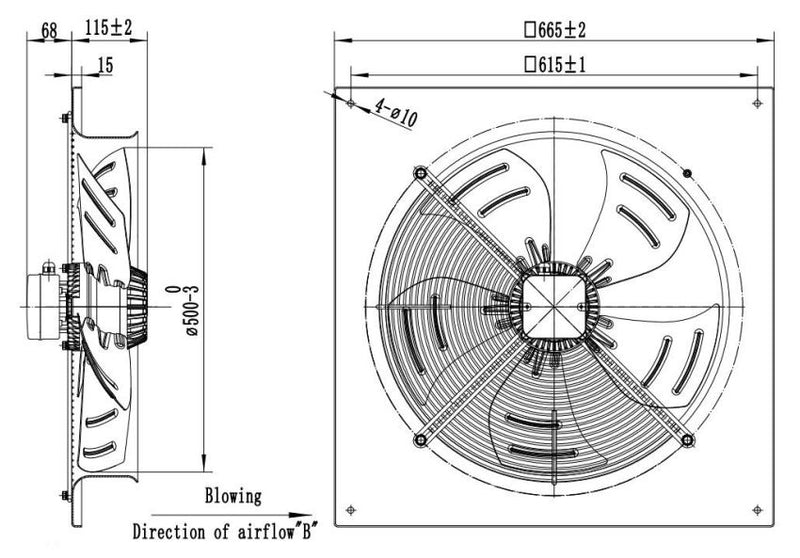

Technical Specifications
- Diameter: 520 mm
- Material: Metal
- Colour: Black
- Airflow: 6500 m³/h
- Voltage: 220-240 V ~ 50Hz
- Power: 420 W
- Noise level: 69 dB(A)
- Motor speed: 1320 RPM
- IP rating: IP44
- Working temperature: -30℃ – 60℃
- Installation depth (into hole): 152 mm
- Dimensions (W×D×H): 570×570×220 mm
- Weight: 15.9 kg
- Recommended products: FSC001 speed controller
Applications

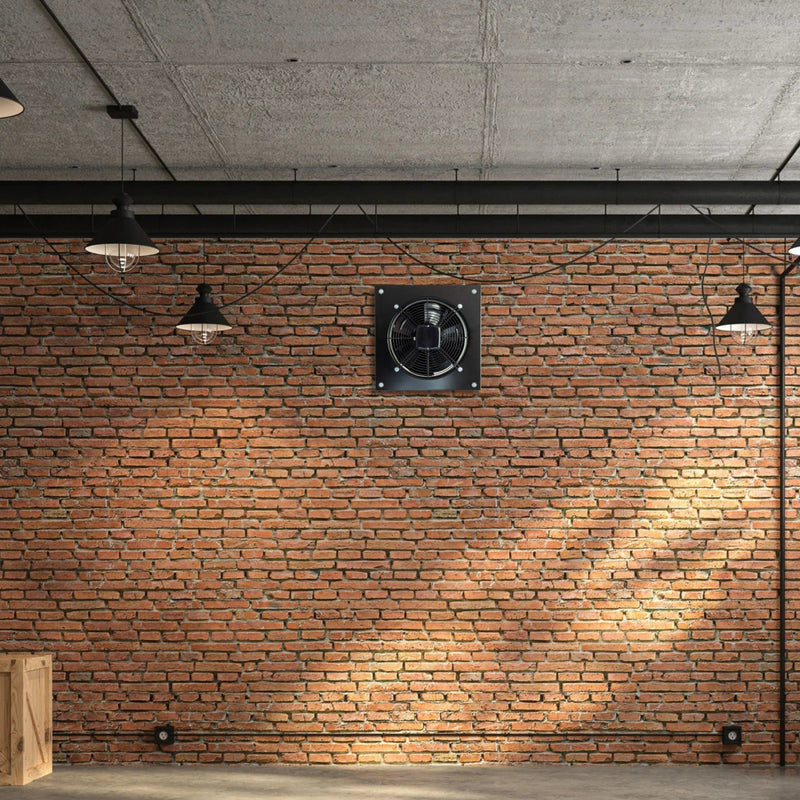

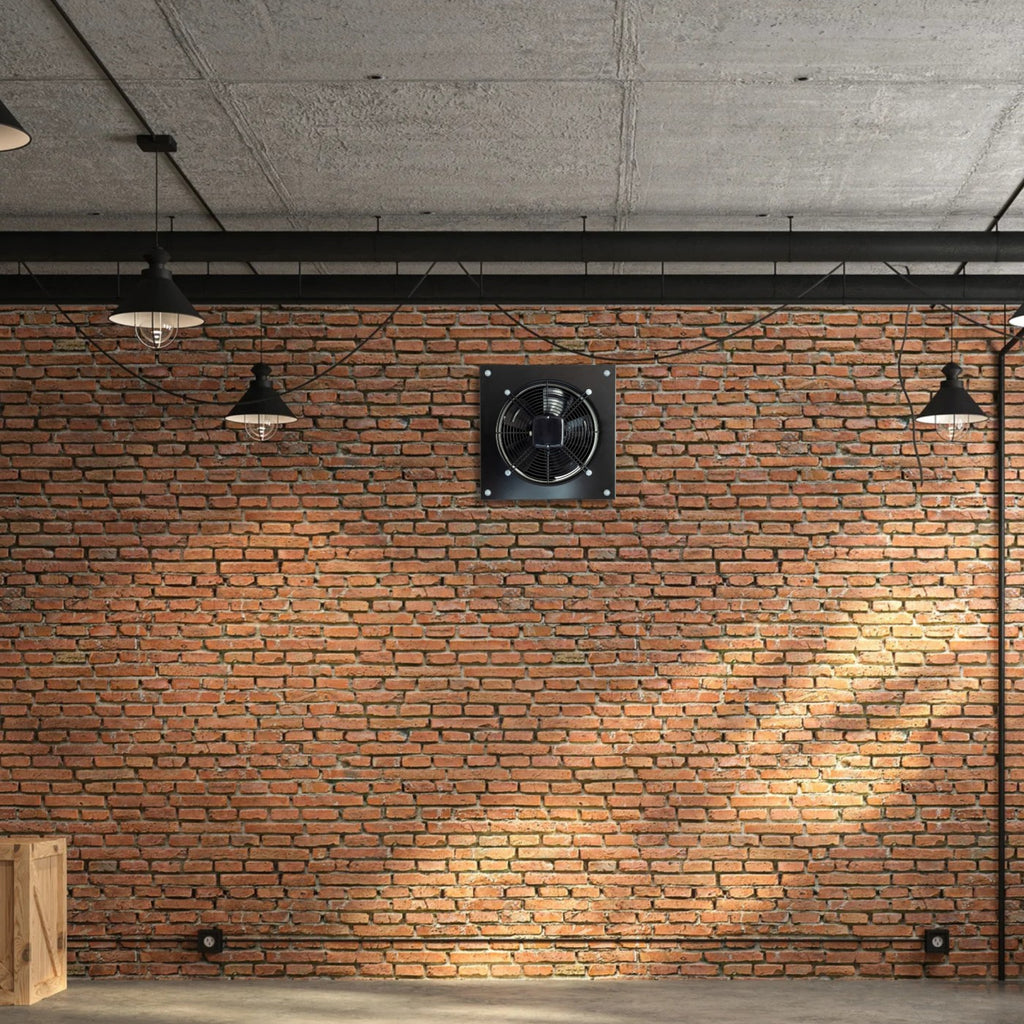

Axial fans are designed for efficient air circulation and ventilation in industrial, commercial, and large residential areas. They are commonly used in restaurant kitchens, workshops, warehouses, greenhouses, factories, and garages. Ideal for systems requiring high airflow with moderate pressure, these fans ensure effective removal of heat, smoke, odors, and humidity, providing a reliable and durable ventilation solution.
Packaging Contents
- Fan
- Operating instructions
