Description

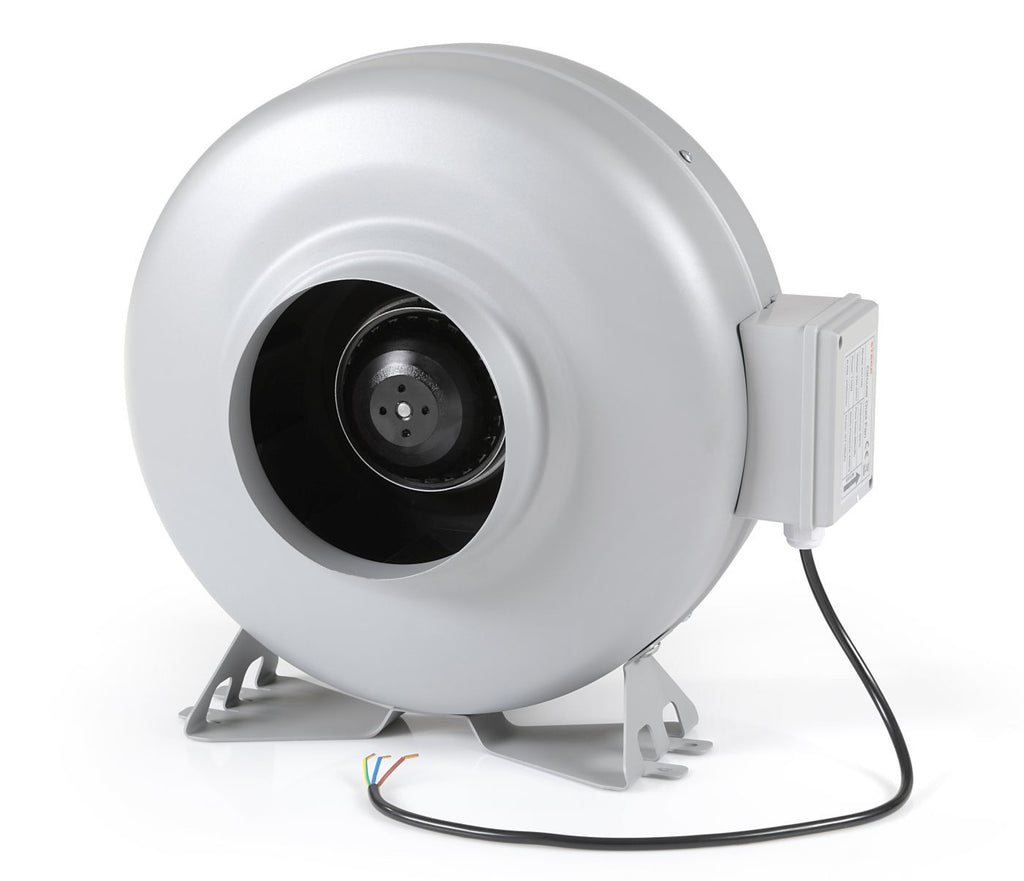

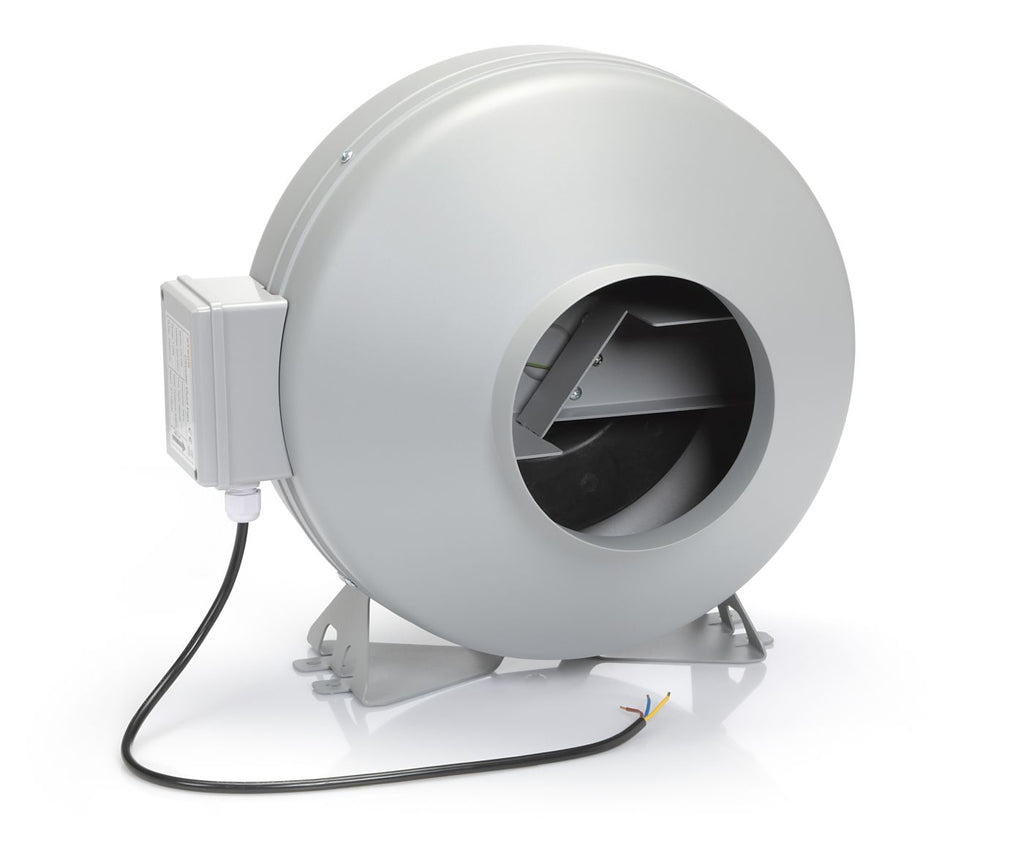

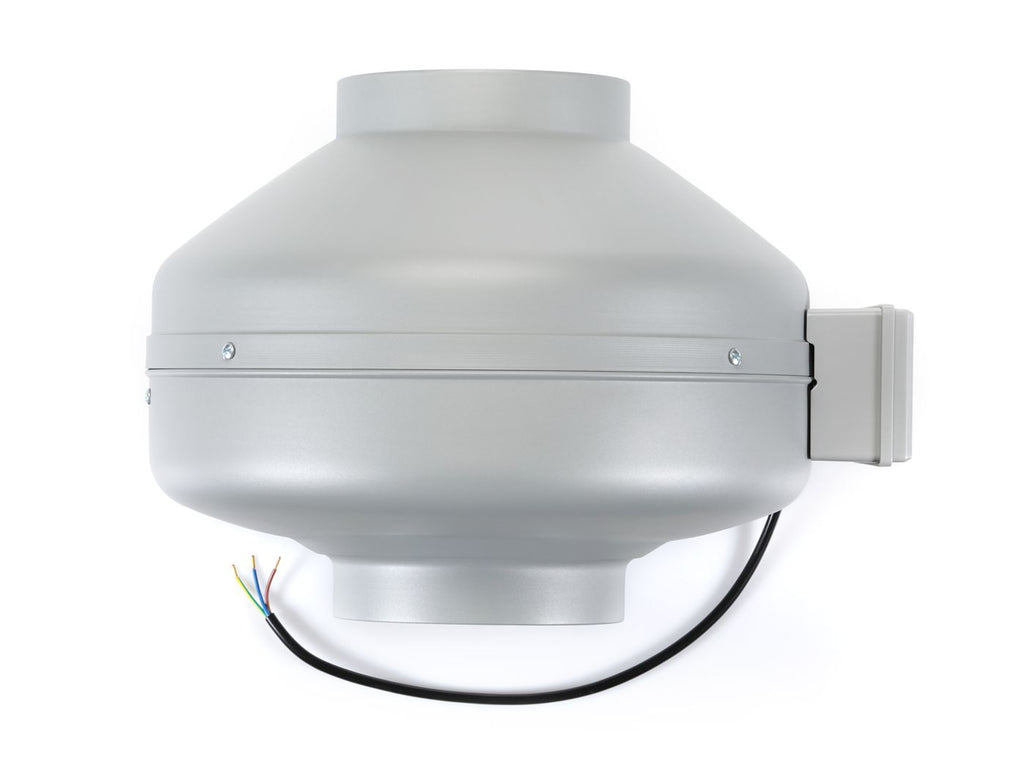

IDC100 – Inline centrifugal duct fan with high pressure for long duct runs.
Product Features
- Durable metal housing
- Ball bearing motor for long lifespan and quiet operation
- Vertical and horizontal installation
- Warranty: 24 months
Technical Specifications
- Diameter: 97 mm
- Material: Metal
- Colour: Grey
- Airflow: 262 m³/h
- Voltage: 220-240 V ~ 50Hz
- Power: 51 W
- Noise level: 68 dB(A)
- Motor speed: 2700 RPM
- IP rating: IP44
- Working temperature: -30℃ – 60℃
- Static pressure: 300 Pa

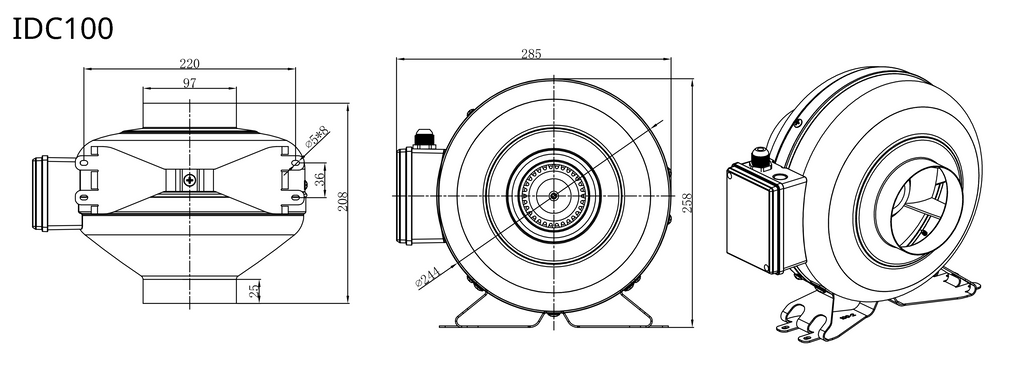

- Dimensions (W×D×H): 285×258×208 mm
- Weight: 3.3 kg
- Recommended products: FSC001 speed controller
- Pressure: 300 MPa
Applications
Centrifugal fans provide high-pressure ventilation for long duct systems and high-resistance environments. Ideal for bathrooms, kitchens, offices, workshops, warehouses, and commercial buildings. Perfect for HVAC systems, air filtration, drying processes, and air circulation in greenhouses, server rooms, and production areas.
Packaging Contents
- Fan
- Operating instructions
