Description

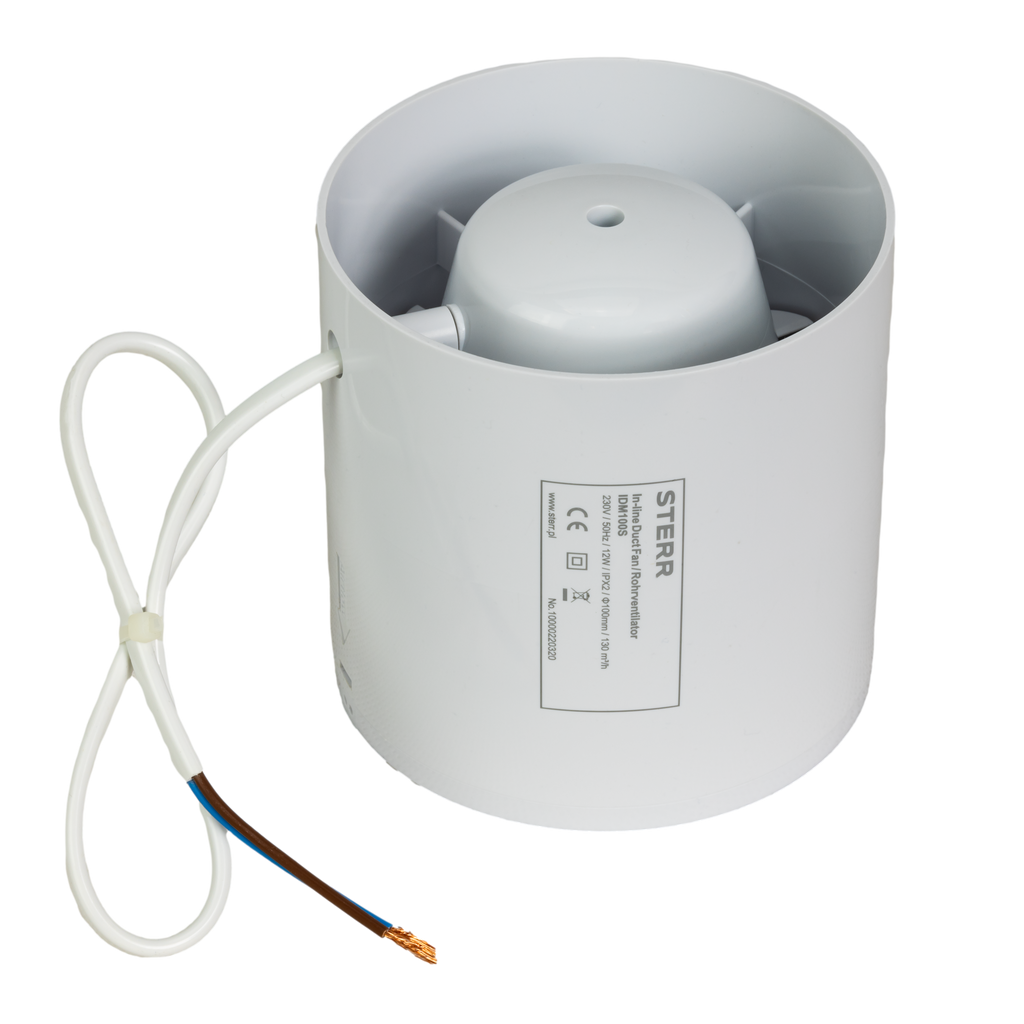

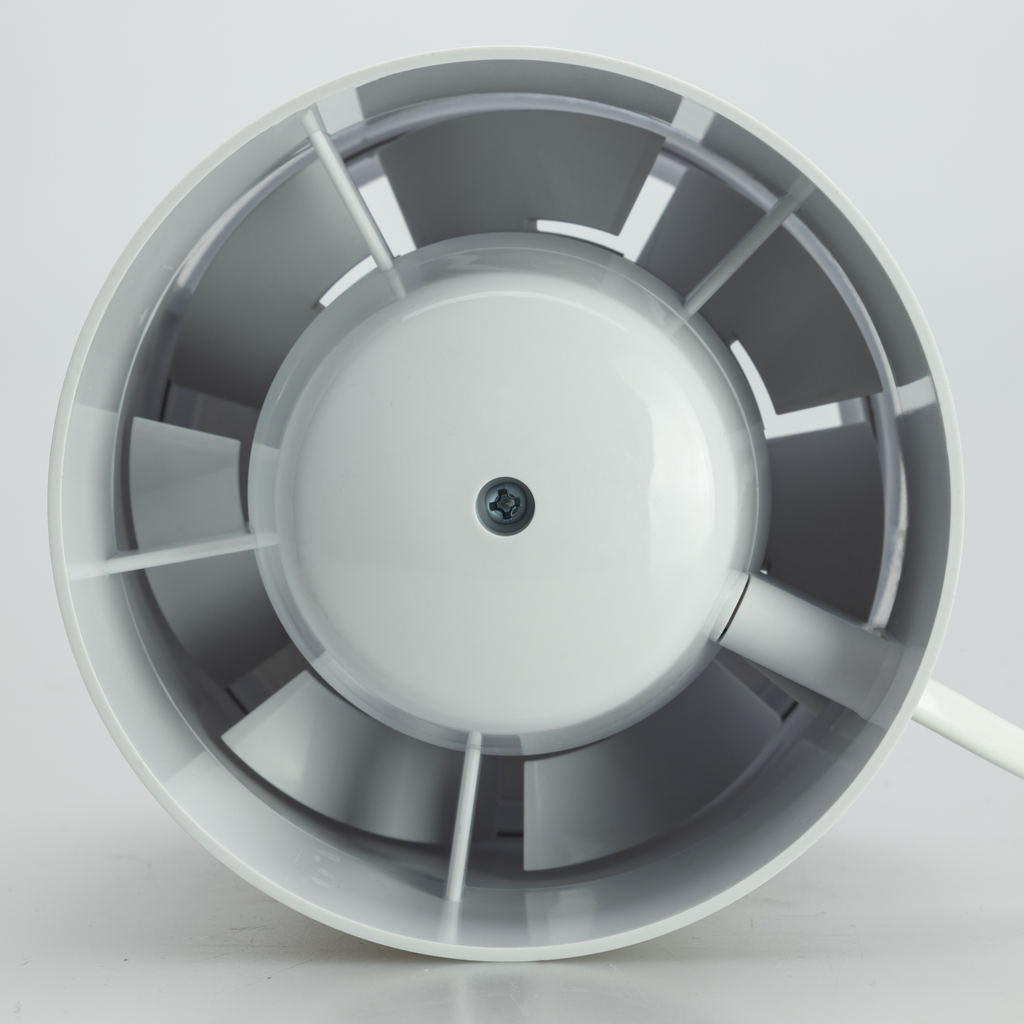

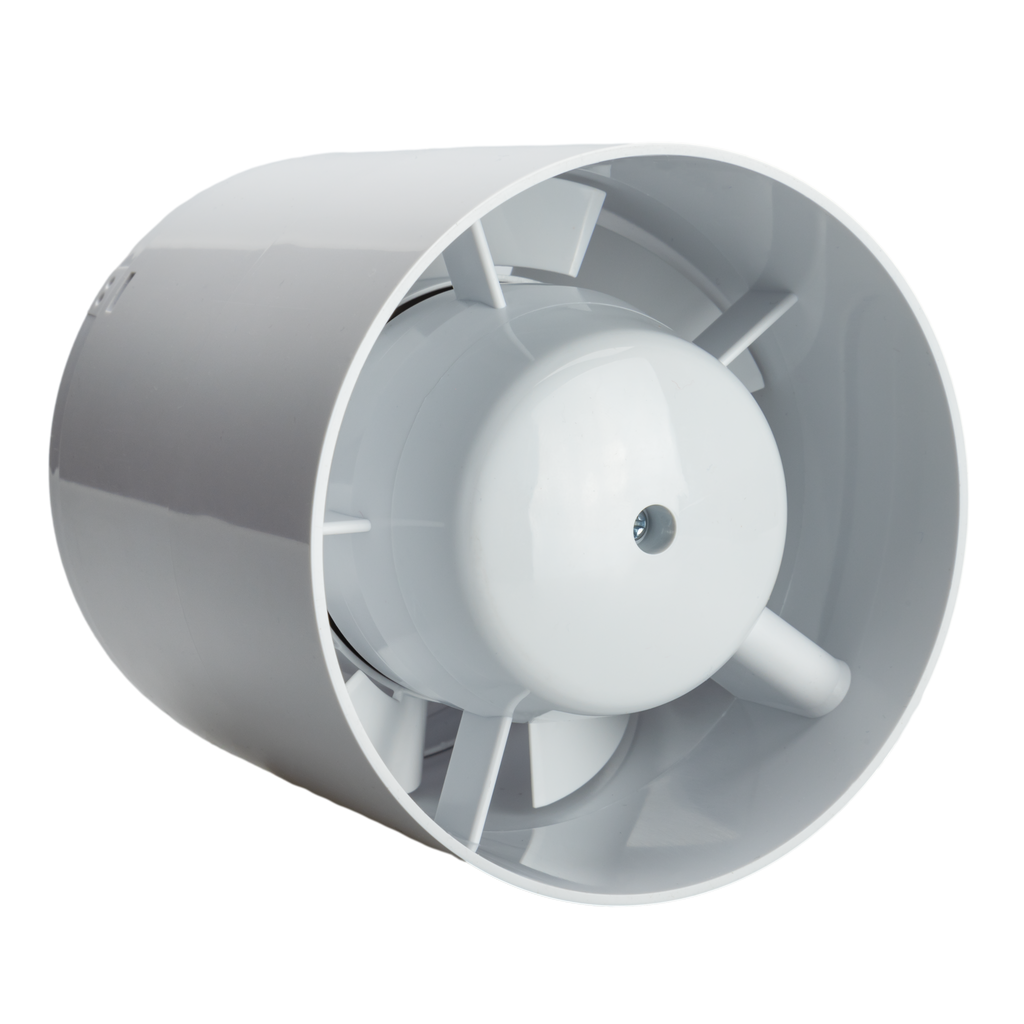

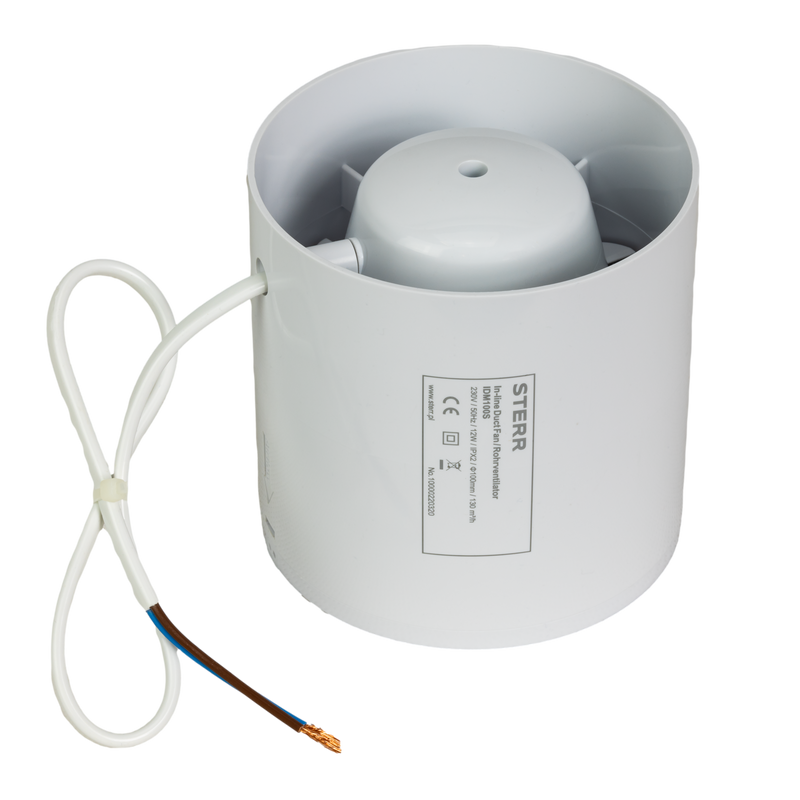

IDM100S – Duct fan for supply and exhaust ventilation systems.
Product Features
- Slim Design
- Ball bearing motor for long lifespan and quiet operation
- Vertical and horizontal installation
- Warranty: 24 months
Technical Specifications
- Diameter: 98 mm
- Material: ABS
- Colour: White

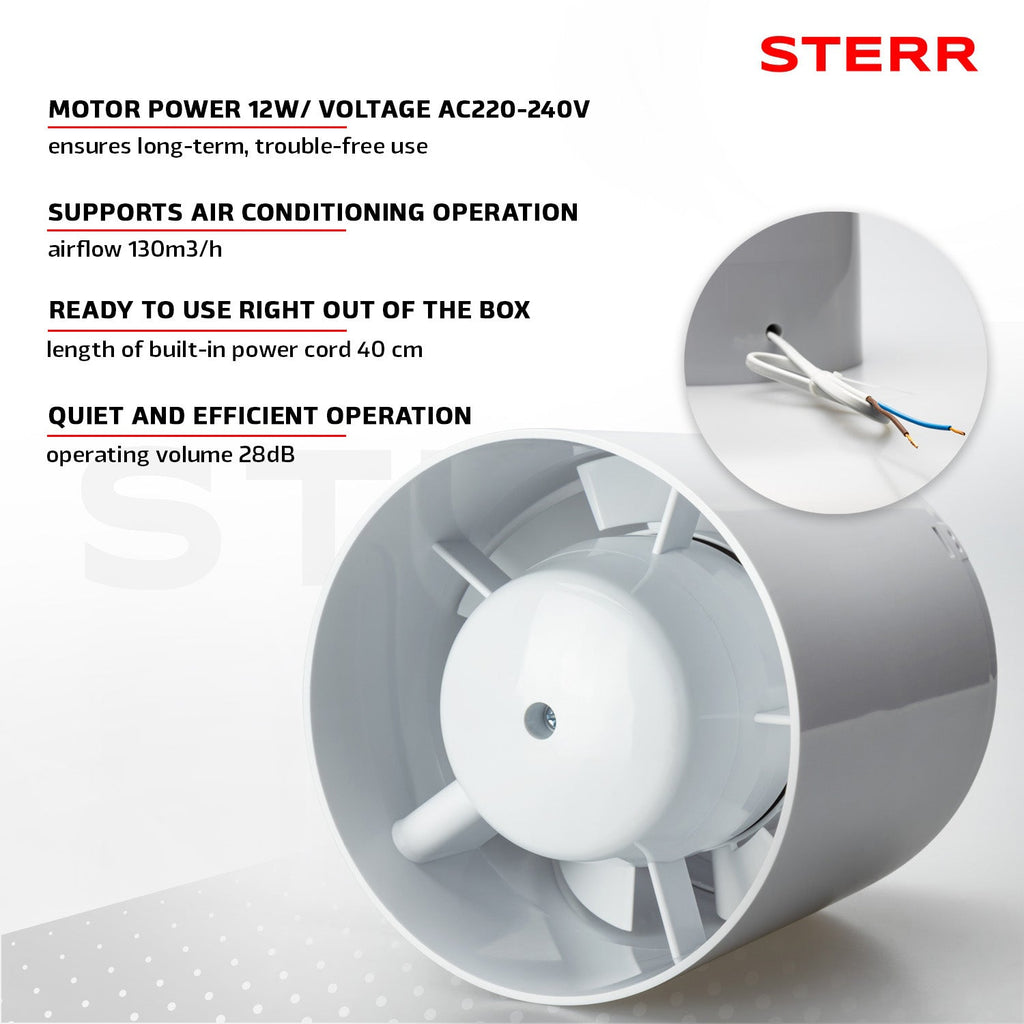

- Airflow: 130 m³/h
- Voltage: 220-240 V ~ 50Hz
- Power: 12 W
- Noise level: 34 dB(A)
- Motor speed: 2400 RPM
- IP rating: IPX2

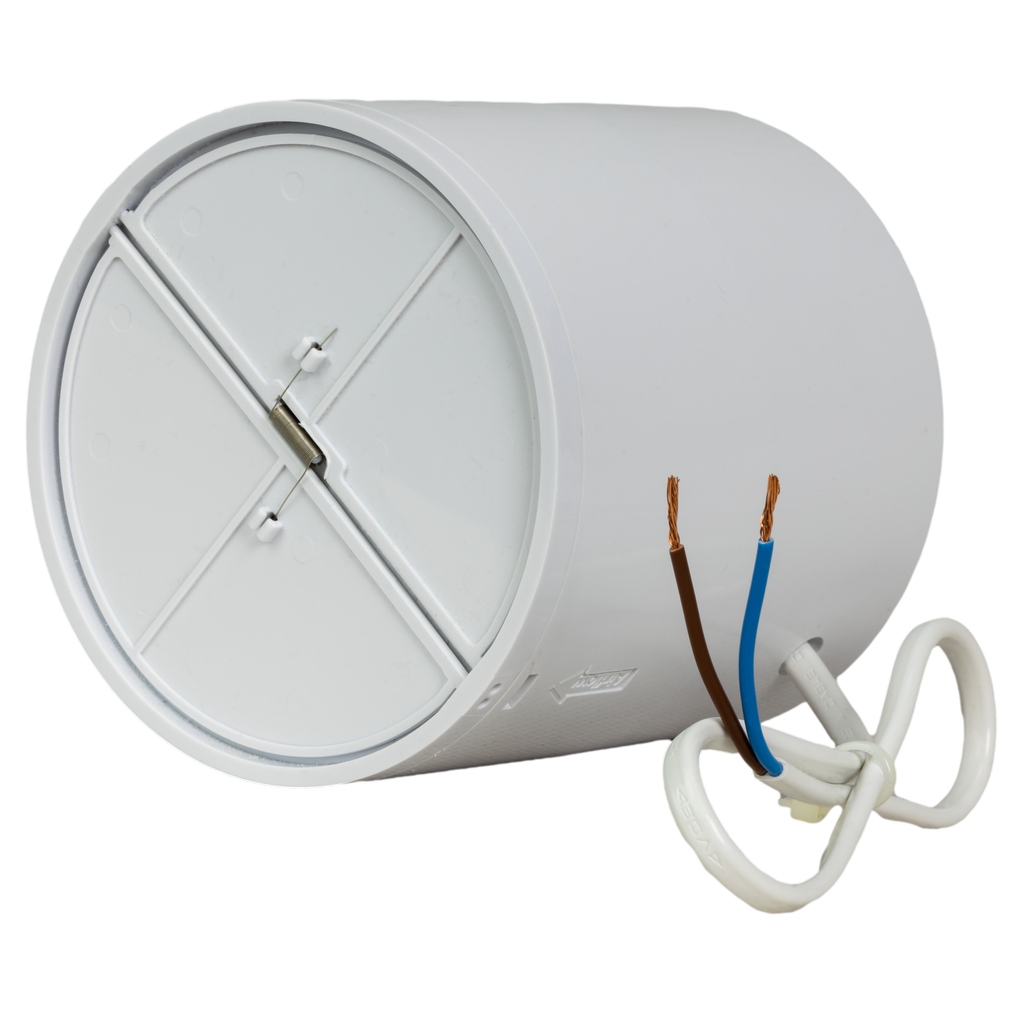

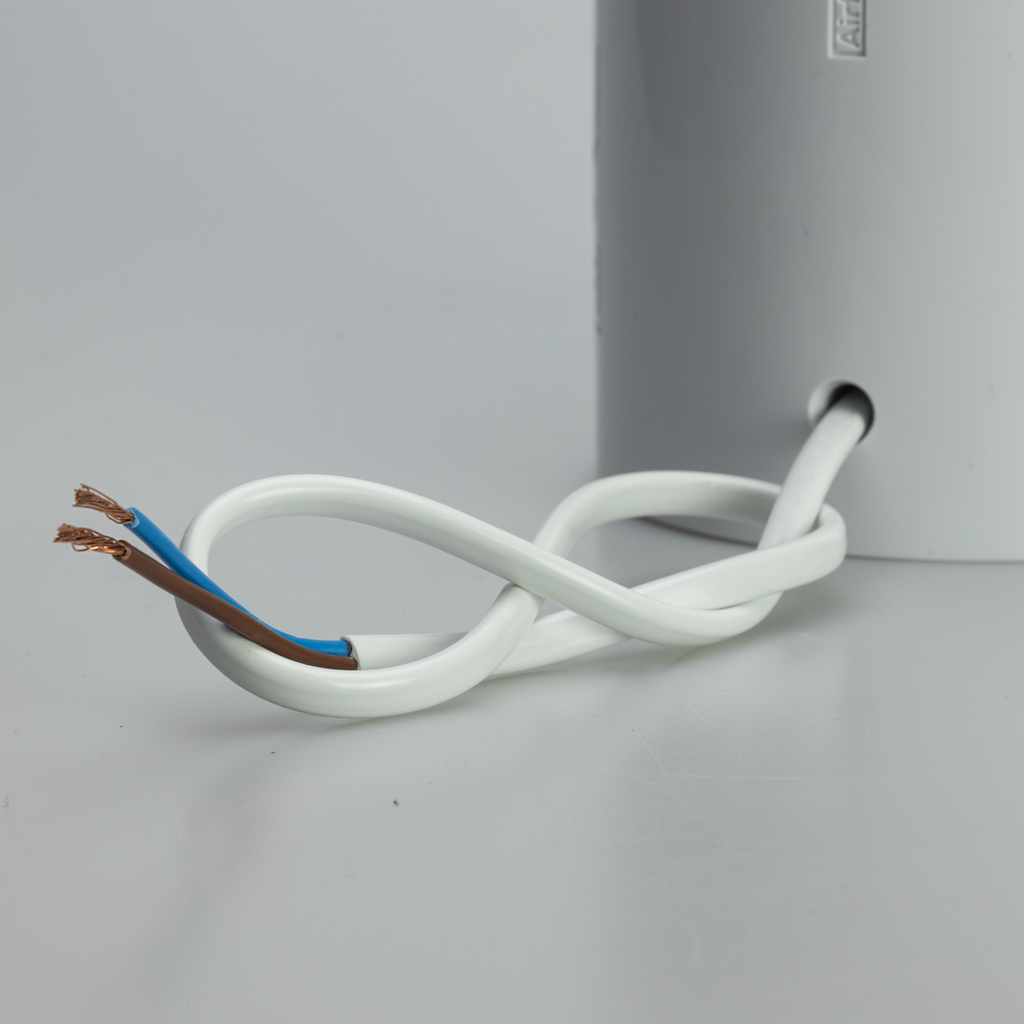

- Number of wires to connect: 2
- Dimensions (W×D×H): 98×98×98 mm
- Weight: 0.45 kg
Applications
Small duct fans are designed for ventilation systems in residential and commercial spaces. They are ideal for short and medium-length duct runs where compact size and quiet operation are required. Commonly used in bathrooms, kitchens, utility rooms, offices, and apartments to ensure efficient air exchange and moisture removal.
Packaging Contents

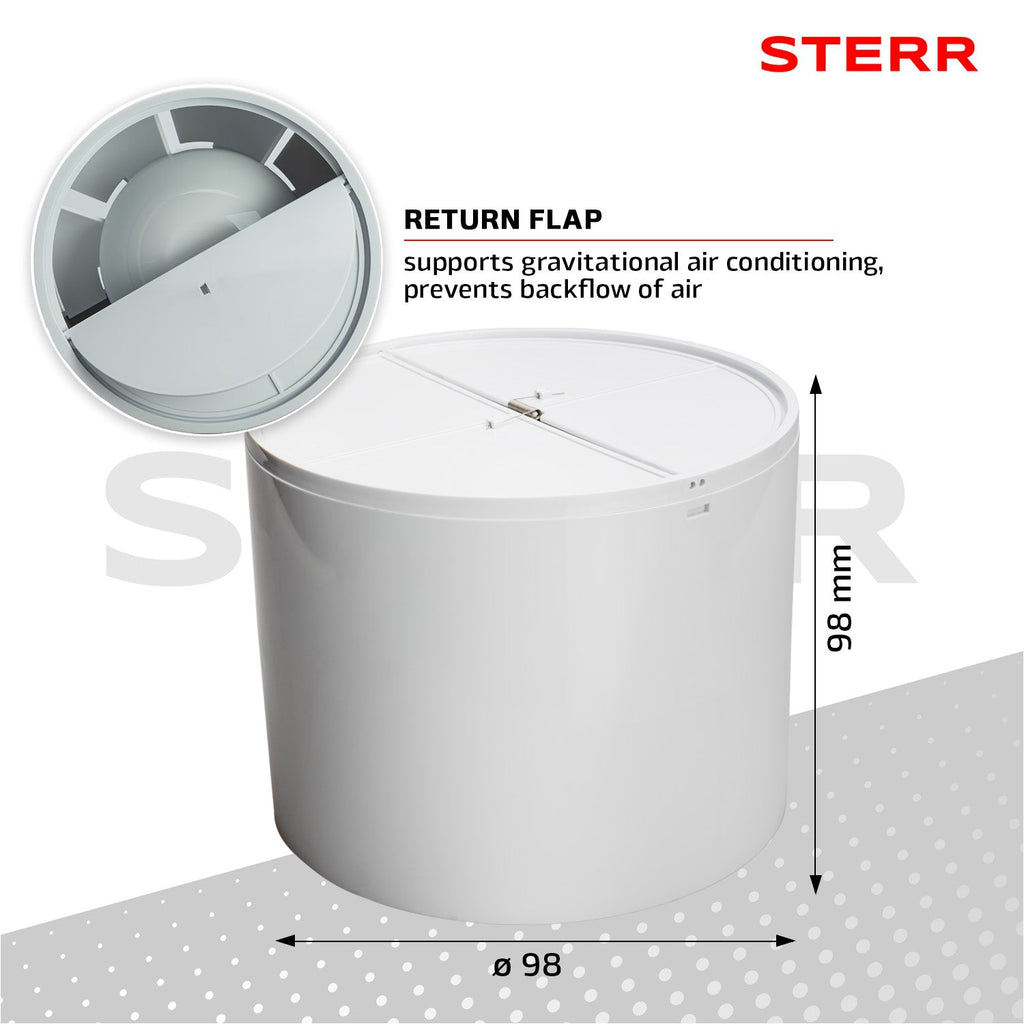

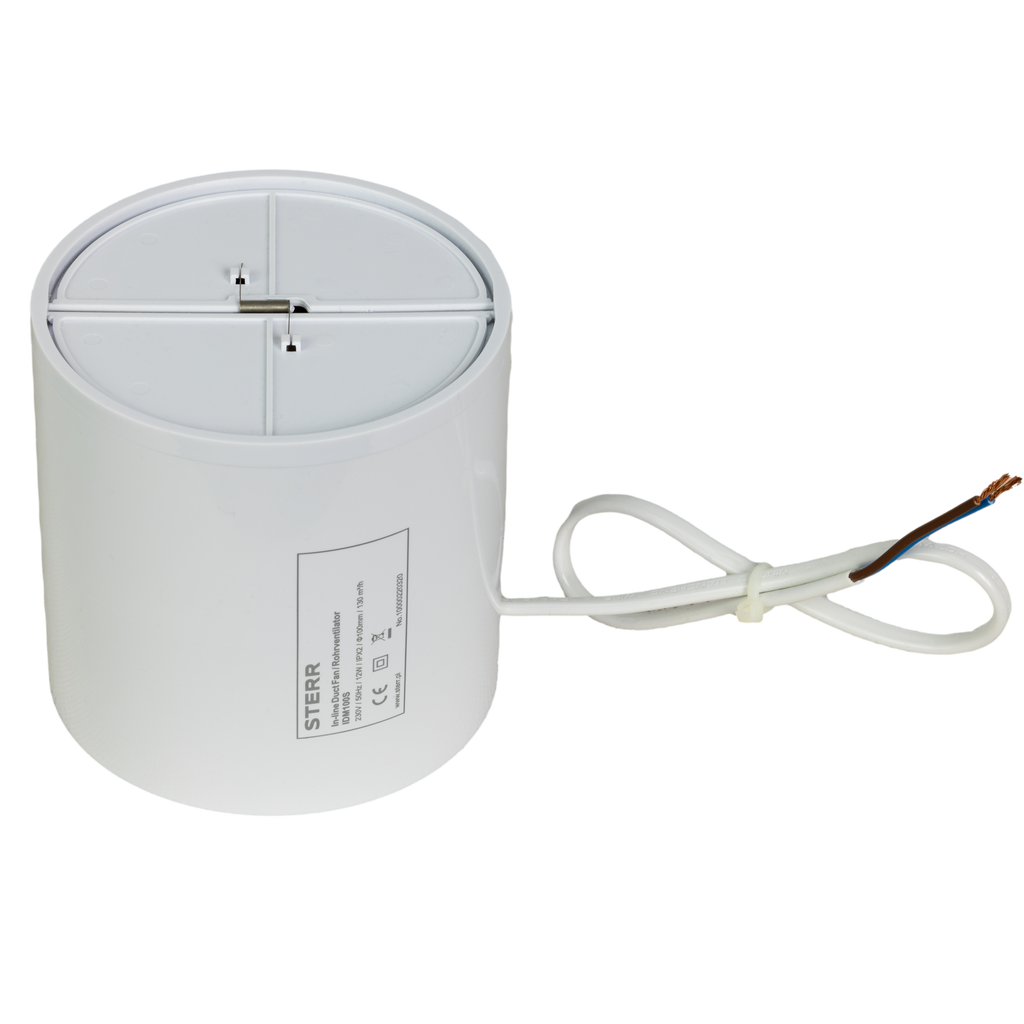

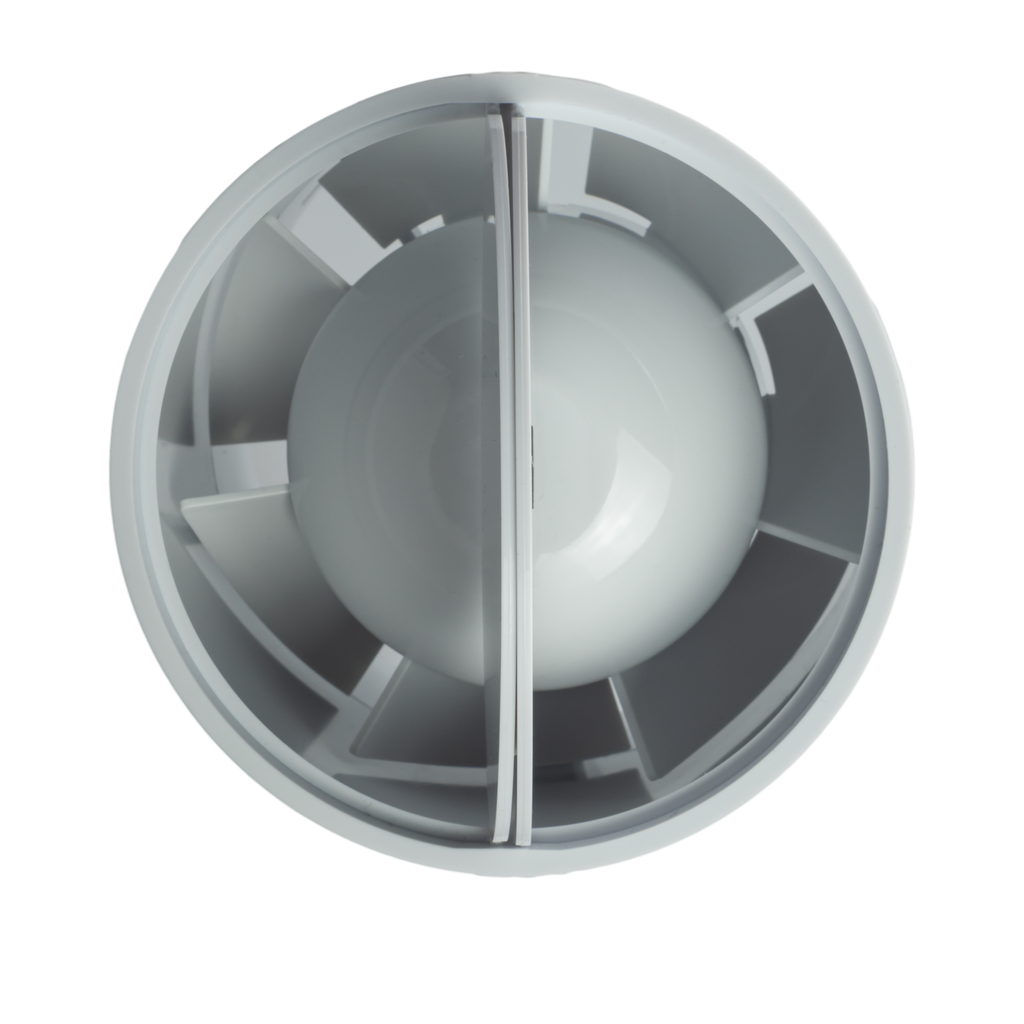

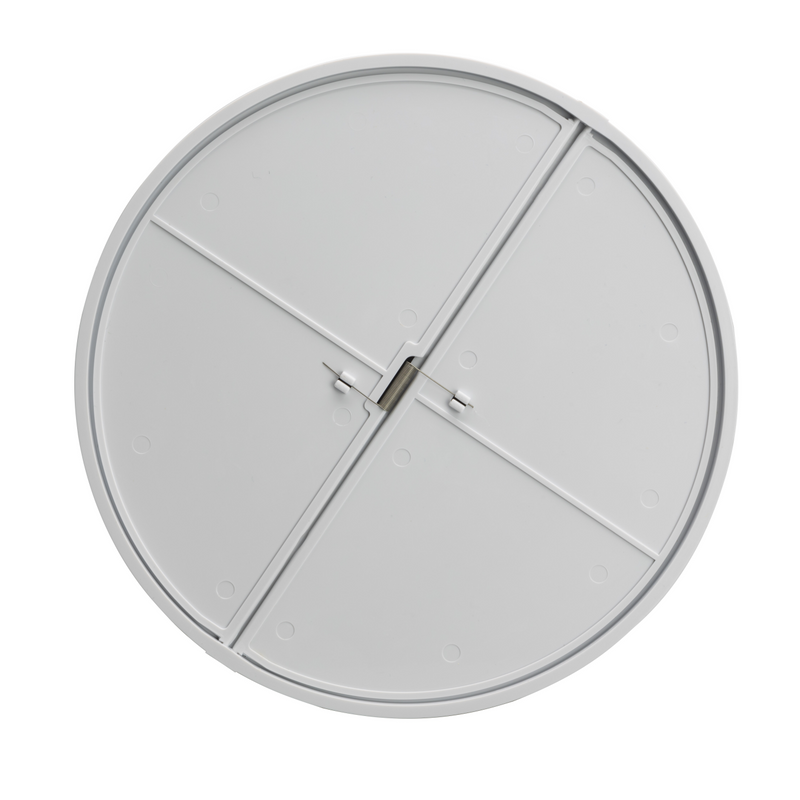

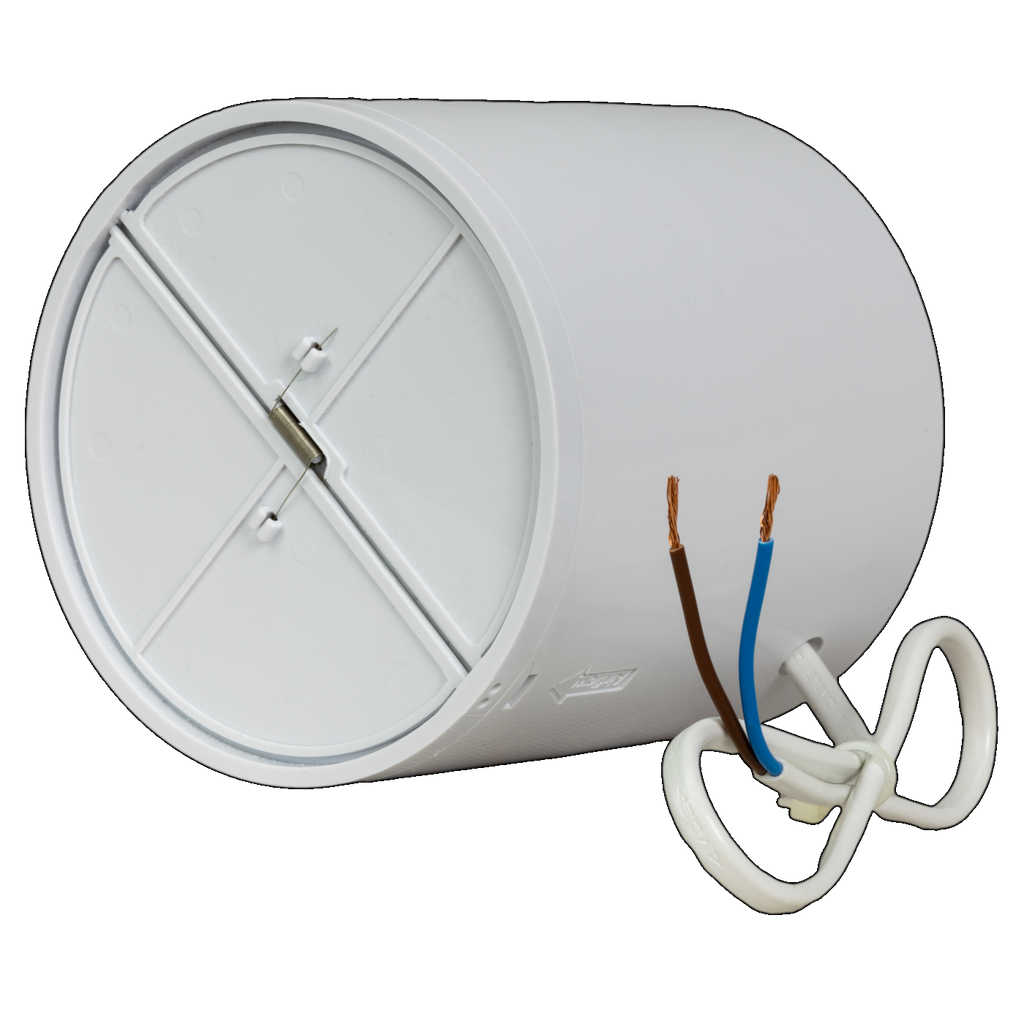

- Fan with backdraft shutter
- Operating instructions
