Description

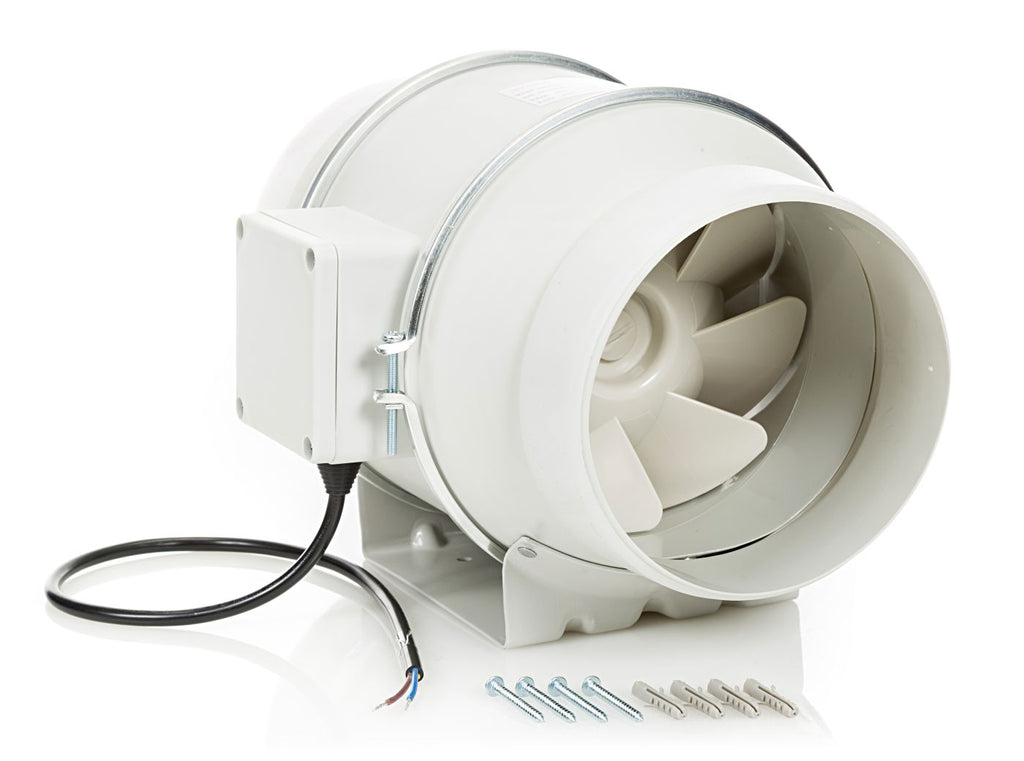

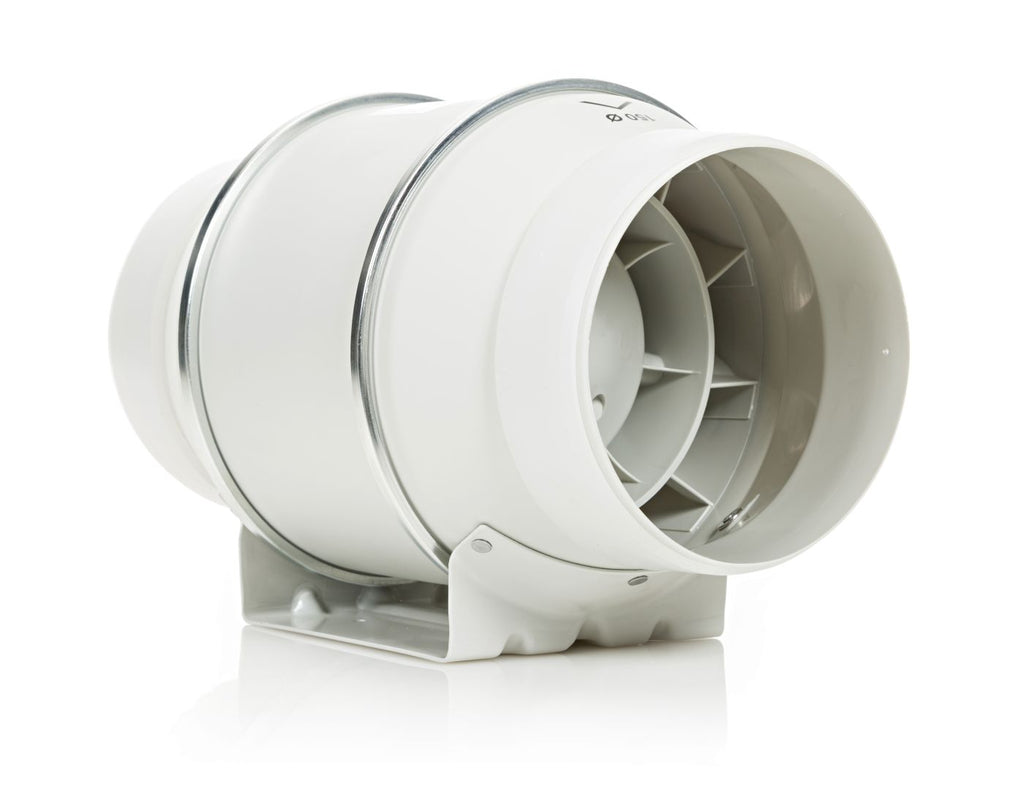

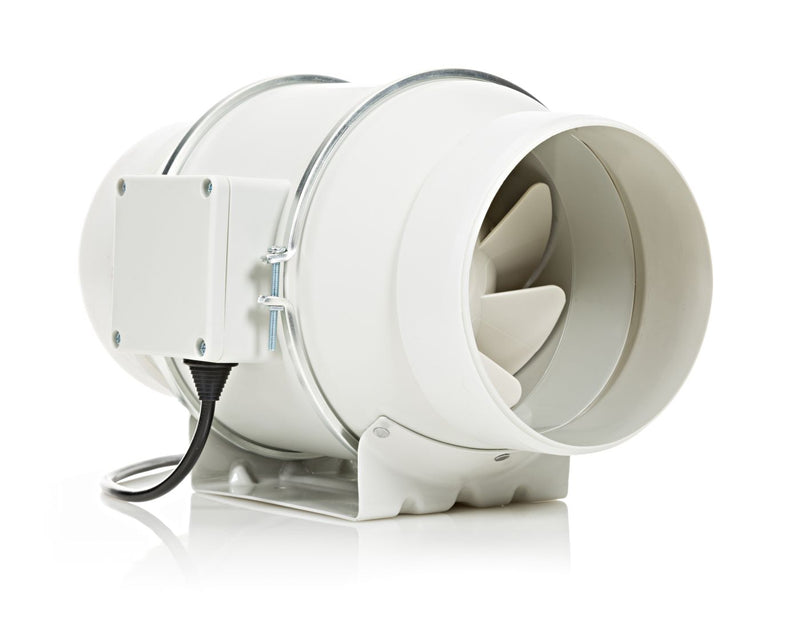

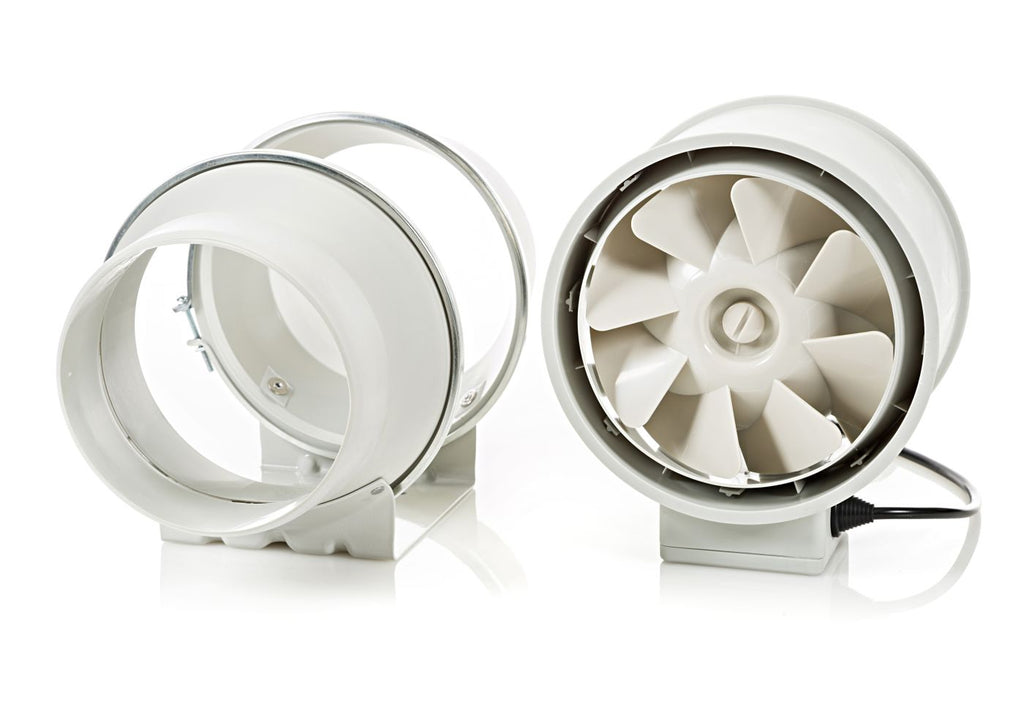

DFA150 – Duct fan for supply and exhaust ventilation systems.
Product Features
- Two-Speed
- Ball bearing motor for long lifespan and quiet operation
- Vertical and horizontal installation
- Warranty: 24 months
Technical Specifications
- Diameter: 147 mm
- Material: ABS
- Colour: White
- Airflow: 1st gear: 410, 2nd gear: 530 m³/h
- Voltage: 220-240 V ~ 50Hz
- Power: 1st gear: 44, 2nd gear: 54 W
- Noise level: 1st gear: 26, 2nd gear: 31 dB(A)
- Motor speed: 1st gear: 1850, 2nd gear: 2550
- IP rating: IP44
- Working temperature: -30℃ – 60℃
- Static pressure: 1st gear: 240, 2nd gear: 300 Pa

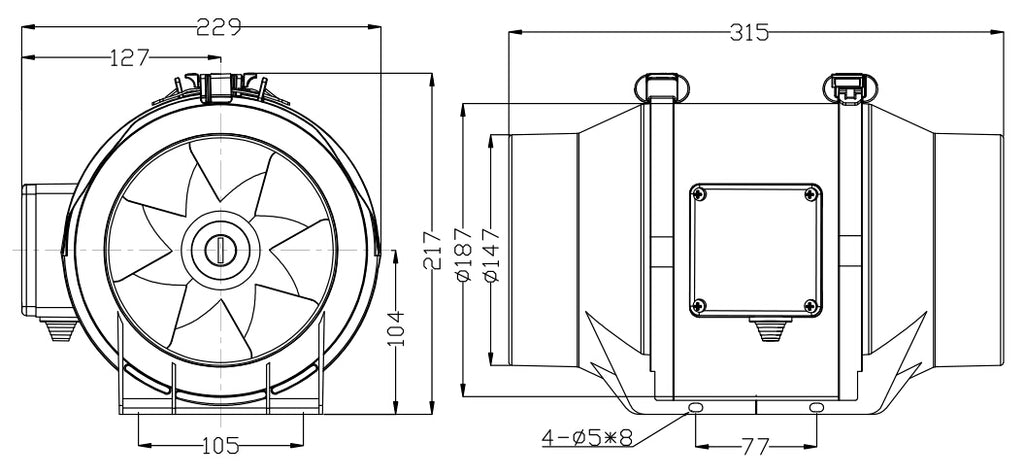

- Dimensions (W×D×H): 229×217×315 mm
- Weight: 3 kg
- Recommended products: DSC001 two speed controller, FSC001 speed controller
- Pressure: 1st gear: 240, 2nd gear: 300 MPa
Applications
Larger duct fans are designed for ventilation systems that require high airflow and pressure over long duct runs. They are suitable for industrial, commercial, and large residential buildings, including warehouses, workshops, offices, restaurants, and public facilities. These fans ensure efficient air exchange, removal of heat, odors, and humidity, and reliable performance in demanding environments.
Packaging Contents
- Fan
- Operating instructions
